Identify the following image?& x20; - AIIMS Delhi NO - 2018

AIIMS Delhi NO - 2018

Medical Surgical Nursing

Easy

Appeared in: AIIMS Delhi NO - 2018

Explanation

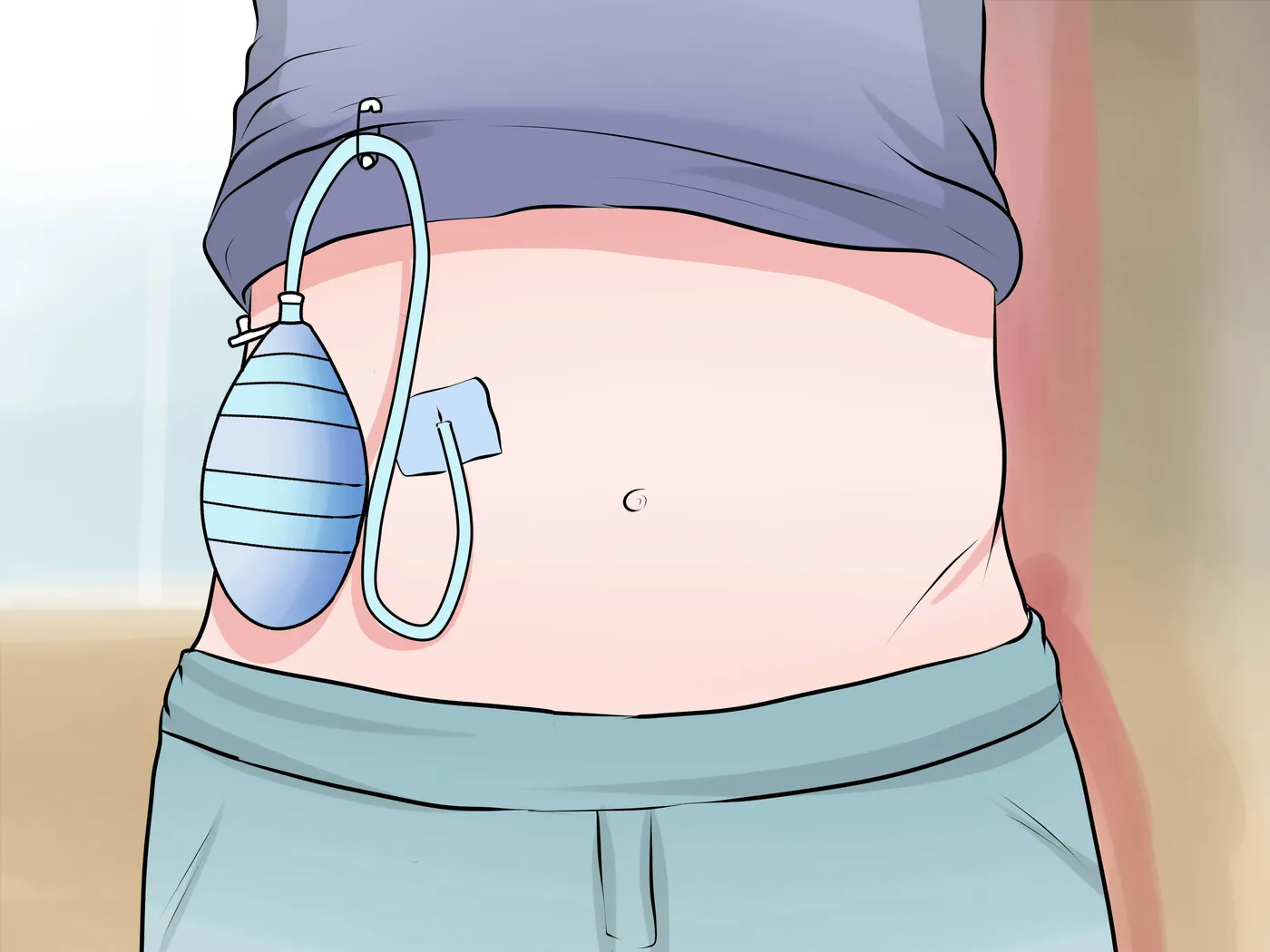

The device in the image is a Jackson-Pratt (JP) drain.
It is identified by its characteristic grenade-shaped, compressible bulb connected to a flexible drainage tube.
This design creates a closed-suction system to gently remove post-operative fluids from a wound bed, preventing fluid accumulation and promoting healing.
The bulb has a port for emptying the collected fluid and a plug to maintain the vacuum.

Option B: A Penrose drain is an open drainage system consisting of a soft, flat, flexible rubber-like tube. It does not have a collection reservoir or a suction mechanism; it drains passively onto a dressing.
Option C: A Hemovac drain is also a closed-suction system, but it uses a larger, circular, spring-loaded container to create suction. Its appearance is distinctly different from the grenade-shaped bulb of a JP drain.
Option D: This is a general term. While a JP drain is a type of surgical drain, this option is not specific enough. The question requires the identification of the particular device shown.

Clinical Relevance

Nursing practice connection: This is primarily an exam-oriented knowledge point with limited direct bedside application, so retain Identification of surgical drainage systems as background academic context rather than a clinical decision trigger.
Accurate identification of surgical drains is crucial for nurses to provide appropriate care, including correct activation of suction, monitoring of drainage, and patient education.
Improper management, such as failing to compress the bulb of a JP drain, can lead to ineffective drainage, resulting in hematoma or seroma formation, wound dehiscence, and infection.
What if? If the JP drain bulb is found fully inflated, it means suction is lost. The nurse must first check if the bulb is full and needs emptying. If not, they should inspect the tubing for kinks or clots and check the insertion site and all connections for air leaks. Re-establishing suction is critical for proper wound healing.

How to Approach the Question

First, carefully examine the image provided, paying close attention to the shape, components, and overall design of the medical device.
Identify the key features: a flexible tube connected to a distinct, compressible, grenade-shaped bulb.
Recall or look up the characteristics of the different types of surgical drains listed in the options.
Compare the features observed in the image with the descriptions of each option.
Rule out the Penrose drain because it's a simple, open tube without a collection device.
Rule out the Hemovac drain because it has a circular, spring-loaded chamber, not a grenade-shaped bulb.
