Identify the following ECG finding which is denoting in photograph?

NORCET -4 , 2023

Medical Surgical Nursing

Easy

Appeared in: NORCET -4 , 2023

Explanation

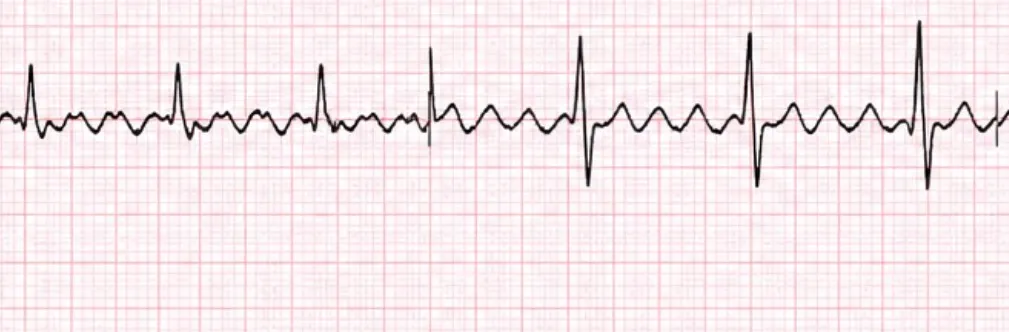

The ECG tracing clearly shows a 'sawtooth' pattern between the QRS complexes, which is the hallmark sign of Atrial Flutter.
These sawtooth waves are known as flutter waves (F waves) and represent rapid, regular atrial depolarization at a rate of approximately 250-350 beats per minute.
The QRS complexes are narrow and the ventricular rhythm is regular, which is consistent with a supraventricular tachycardia with a fixed atrioventricular (AV) block.
The combination of these features makes Atrial Flutter the most accurate diagnosis.

Option A: Atrial fibrillation is characterized by an 'irregularly irregular' rhythm and chaotic, fibrillatory waves instead of organized P waves or flutter waves. The ECG in the image shows a regular rhythm with organized sawtooth waves.
Option B: Ventricular tachycardia originates in the ventricles and is defined by wide QRS complexes (greater than 0.12 seconds). The ECG in the image shows narrow QRS complexes, which indicates the rhythm originates above the ventricles.
Option D: SVT (Supraventricular Tachycardia) is a general term for fast heart rhythms originating above the ventricles. While atrial flutter is a type of SVT, 'Atrial flutter' is a more specific and precise diagnosis given the classic sawtooth pattern visible on the ECG. General SVT often presents with a rapid, regular rhythm where P waves are hidden, but it lacks the distinct flutter waves.

Visual 1: Diagram - A comparative chart showing the ECG waveforms for Sinus Rhythm, Atrial Fibrillation, Atrial Flutter, and Ventricular Tachycardia side-by-side. This helps in visually differentiating the key features of each rhythm.
Visual 2: Animation - An animation showing the electrical conduction pathway in the heart during atrial flutter, illustrating the re-entrant circuit around the tricuspid annulus that creates the flutter waves.

Clinical Relevance

Nursing practice connection: This is primarily an exam-oriented knowledge point with limited direct bedside application, so retain ECG interpretation of common cardiac arrhythmias, specifically identifying Atrial Flutter as background academic context rather than a clinical decision trigger.
Recognizing atrial flutter is critical because, similar to atrial fibrillation, it significantly increases the risk of thromboembolism and stroke due to blood stasis in the atria.
Patients with atrial flutter require assessment for anticoagulation therapy (based on CHA₂DS₂-VASc score) to prevent stroke.
Management focuses on controlling the ventricular rate (rate control) with AV nodal blocking agents and/or restoring sinus rhythm (rhythm control) through cardioversion or catheter ablation.

How to Approach the Question

First, analyze the overall rhythm. Observe the R-R intervals to determine if the ventricular rhythm is regular or irregular. In this case, it is regular.
Next, examine the QRS complexes. Note their width. Here, they are narrow (less than 0.12s), which points to a supraventricular origin.
Then, carefully inspect the baseline for atrial activity (P waves). In this ECG, distinct P waves are absent. Instead, there is a continuous, undulating 'sawtooth' pattern.
Identify this specific pattern as flutter waves (F waves). The presence of sawtooth flutter waves is the defining characteristic of Atrial Flutter.
Finally, compare these findings to the given options. The observed features perfectly match the description of Atrial Flutter, making it the correct answer over more general or incorrect options.

Concept Tested & Keywords

Concept Tested: ECG interpretation of common cardiac arrhythmias, specifically identifying Atrial Flutter.
Stem keywords: ECG finding, photograph, identify
Lead-in keywords: Identify
Clinical cues: The visual cue of a 'sawtooth' pattern on the ECG is pathognomonic for Atrial Flutter.
